Product Details
Place of Origin: Jiangsu, China
Brand Name: SZHUASHI
Model Number: ZCPA0218-47A
Payment & Shipping Terms
Price: Prices are negotiable
Packaging Details: Carton
Delivery Time: 2-10days
Features: |
Standard |
Application: |
Microwave Test Equipment, Communications, Radar |
Mounting Type: |
Direct Installation |
Description: |
Broadband Microwave Solid-state Power Amplifier |
Working Frequency Band: |
2~18GHz |
Power Gain: |
≥ 47dB |
Output Power: |
≥ 47dBm (continuous Wave) |
Static Current: |
12A@+28V |
External Dimension: |
165mm * 125mm * 20mm |
Features: |
Standard |
Application: |
Microwave Test Equipment, Communications, Radar |
Mounting Type: |
Direct Installation |
Description: |
Broadband Microwave Solid-state Power Amplifier |
Working Frequency Band: |
2~18GHz |
Power Gain: |
≥ 47dB |
Output Power: |
≥ 47dBm (continuous Wave) |
Static Current: |
12A@+28V |
External Dimension: |
165mm * 125mm * 20mm |

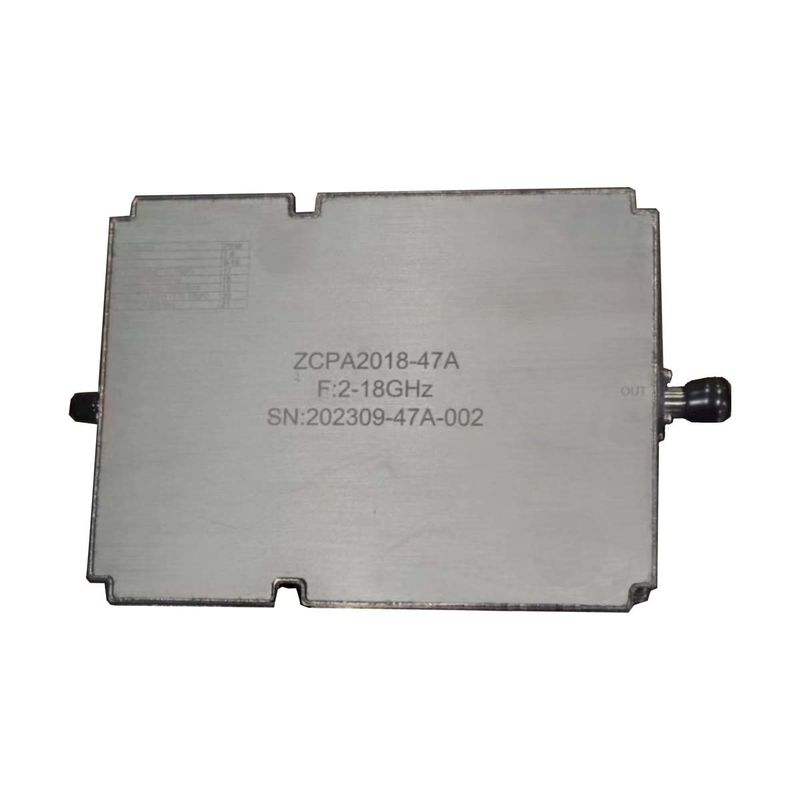

ZCPA0218-47A Broadband Microwave Solid-state Signal Power Amplifier Intergrated Circuit Chip Working Frequency 2 to18GHz
ZCPA0218-47A is a broadband microwave solid-state power amplifier.
It has the characteristics of miniaturization, high efficiency and high reliability, and the saturated output power in full frequency band is more than 50W. It has the functions of power reporting, temperature reporting, current reporting, overvoltage and undervoltage alarm, as well as over-temperature, over-current and over-under-voltage protection.
This module is widely used in microwave testing equipment, communication, radar, electromagnetic interference testing and other fields.
Technical Specifications
| Working frequency band | 2-18GHz |
| Power gain | ≥ 47dB |
| Output power | ≥ 47dBm (continuous wave) |
| Static current | 12A@+28V |
| External dimension | 165mm × 125mm × 20mm |
Always final Inspection before shipment;
1 year warranty for our products.
