Product Details
Place of Origin: Jiangsu, China
Brand Name: RFint
Model Number: YP242034
Payment & Shipping Terms
Price: Prices are negotiable
Packaging Details: Carton
Delivery Time: 2-10days
Type: |
Power Amplifier |
Network: |
Wireless Lan, 4g |
Parameter: |
Rating |
Type: |
Power Amplifier |
Network: |
Wireless Lan, 4g |
Parameter: |
Rating |

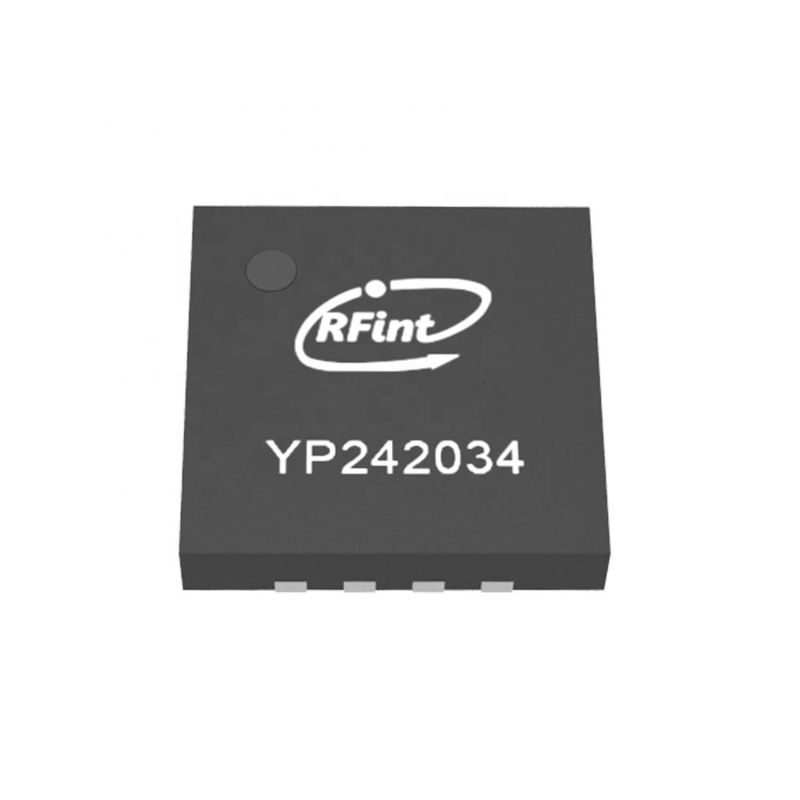

RFint YP242034 Black High Power PA Rf Amplifier In GaP/GaAs HBT Technology for 2.4-2.5GHz
The YP242034 is a high-power PA based on the highly-reliable InGaP/GaAs HBT technology. It can be easily configured for high-power, high-gain applications with super power-added efficiency while operating over the 2.4~2.5GHz frequency band. The YP242034 is assembled in a 16-pin, 4×4mm2, QFN package. It is internally integrated with ESD protection unit.
Features
| Frequency Range: | 2.4~2.5GHz |
| Operation Voltage: | 3.3V~6.0V |
| Gain: | 20dB~22dB |
| Quiescent Current: | 260mA~300mA |
| Input Return Loss: | ≥15dB |
Always final Inspection before shipment;
1 year warranty for our products.
